Yamaha DBR10 700-Watt PA喇叭

NT$18,000

單隻價格

Compare

描述

DBR15

DBR12

DBR10

揚聲器種類 2-way, Bi-amp powered speaker, Bass-reflex type 2-way, Bi-amp powered speaker, Bass-reflex type 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 50Hz – 20kHz 52Hz – 20kHz 55Hz – 20kHz
標稱涵蓋率 90° 90° 90°
V 60° 60° 60°
元件 LF Diameter:15″ cone, Voice Coil:2.5″, Magnet:Ferrite Diameter:12″ cone, Voice Coil:2″, Magnet:Ferrite Diameter:10″ cone, Voice Coil:2″, Magnet:Ferrite
HF Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite Diaphragm:1″, Type: 1″ throat compression driver, Magnet:Ferrite
跨功能鍵 2.1kHz: FIR-X tuning™ (linear phase FIR filter) 2.1kHz: FIR-X tuning™ (linear phase FIR filter) 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
輸出電源 Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) Dynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W) Dynamic:700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W)
最大輸出極(1m ; 軸) 132dB SPL 131dB SPL 129dB SPL

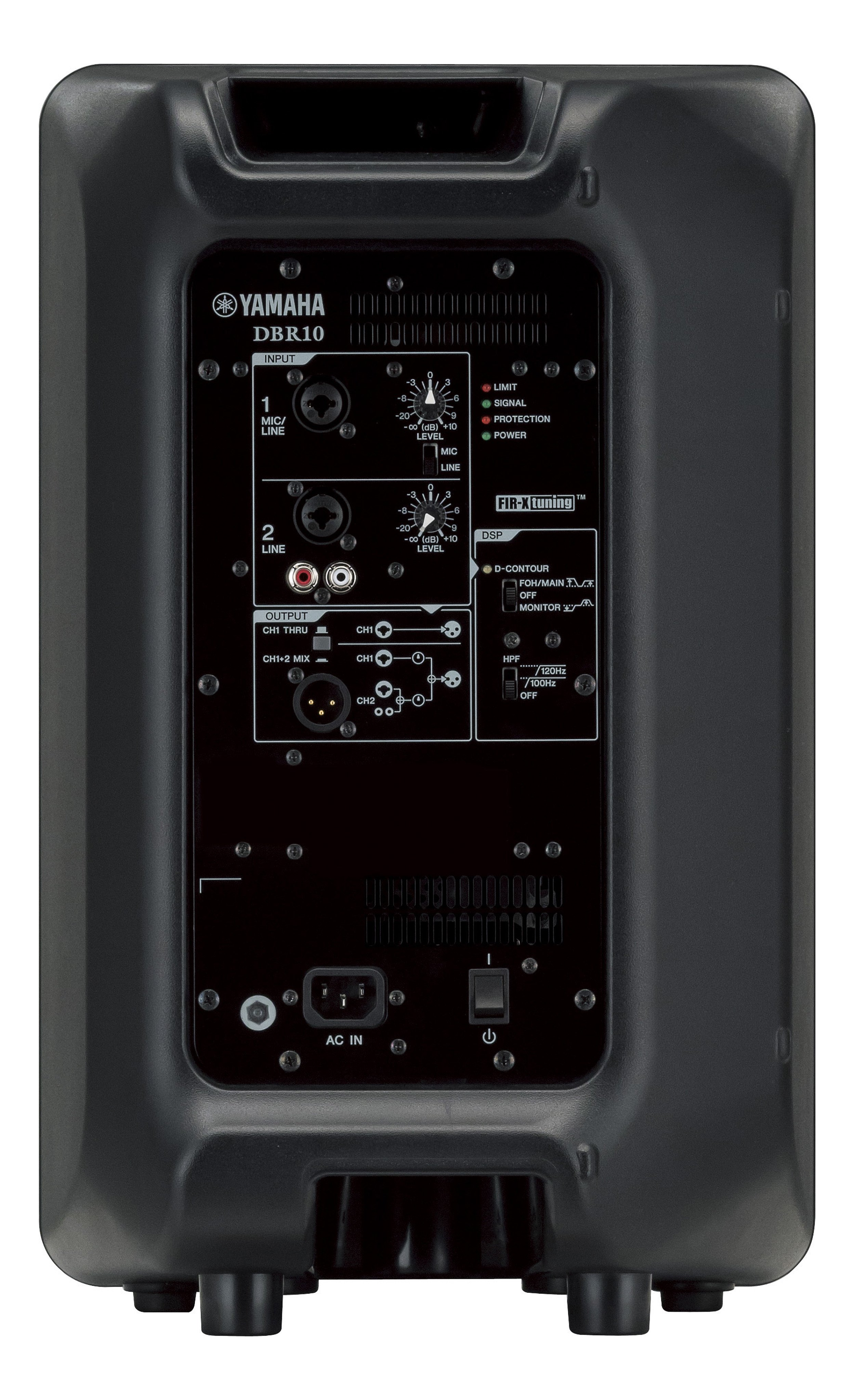

I/O 連接器 INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
處理器 D-CONTOUR: FOH/MAIN, MONITOR, OFF D-CONTOUR: FOH/MAIN, MONITOR, OFF D-CONTOUR: FOH/MAIN, MONITOR, OFF
Heat dissipation Fan cooling, 4 speeds Fan cooling, 4 speeds Fan cooling, 4 speeds
電源需求 110V , 60Hz 110V , 60Hz 110V , 60Hz
耗電量 74W(1/8 Power Consumption), 18W(Idle) 74W(1/8 Power Consumption), 18W(Idle) 60W(1/8 Power Consumption), 18W(Idle)
機櫃材質 Plastic Plastic Plastic
顏色/烤漆 Black Black Black
手把 Side x 2 Side x 2 Top x 1
飛行和安裝硬體 Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) Bottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts) Bottom x 2 (Fit for M8 x 15 mm eyebolts)
Pole 插座 35mm (Bottom x 1) 35mm (Bottom x 1) 35mm (Bottom x 1)
尺寸 455mm (17.9″) 376mm (14.8″) 308mm (12.1″)
700mm (27.6″) 601mm (23.7″) 493mm (19.4″)
378mm (14.9″) 348mm (13.7″) 289mm (11.4″)
淨重 19.3 kg (42.6 lbs) 15.8 kg (34.8 lbs) 10.5 kg (23.2 lbs)
配件 BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket) BBS251, BCS251, BWS251-300, BWS251-400 (Optional Speaker bracket)
